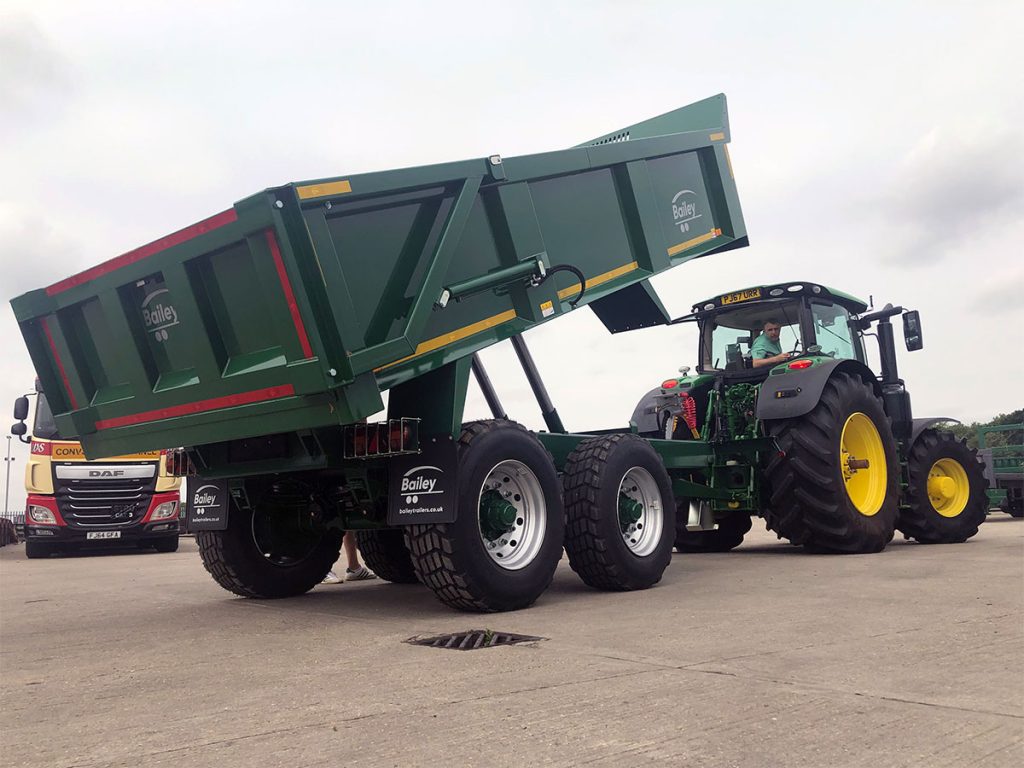

Bailey Contract Tipper

Models 7 models

Enquire Now

ON SITE OR ON FARM…

Our Contract Tipper is the perfect solution for hauling either topsoil or stone. Additionally, when specified with the optional extension sides this trailer is ideal for hauling significant amounts of grain.

We build our Contract Tipper on a rugged, heavyduty RHS bottom chassis. The axles are mounted on tandem springs for stability over a variety of terrains. Further strength is gained from the reinforced sides and floor, which makes this trailer a stronger option when compared to conventional grain trailers.

STANDARD FEATURES

✓ CT17-CT28 Air brakes and load sensing
✓ Hydraulic door
✓ Hydraulic brakes
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ CT14-CT28 Metal mudguards with flaps
✓ Extra lights on rear door
✓ Heavy-duty floors and sides
✓ Front aggregate guard
✓ LED lights
✓ LED beacon
✓ Chromed rams
✓ Body prop
✓ Anti-chip paint on headboard
✓ Sprung drawbar CT14-CD28
✓ Colour coded pipes

OPTIONS

SHEETING SYSTEM

✓ Hydraulic Front to Back Sheet

DOORS

✓ Hydraulic Door with Integrated Barn Door
✓ Hydraulic Fold Down Door
✓ Barn Door
✓ Grain Chute
✓ Grain Sock
✓ Grain Sampler

LIGHTS

✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights and Mudflaps
✓ Extra Rear Lights
✓ High Visibility Safety Strips

TOWING EYES

✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye

SIDES AND FLOORS

✓ Extra Depth (75mm stages)
✓ Extra Thick Floor
✓ Extra Thick Sides
✓ Extension Sides
✓ Harder Wearing Flooring

GUARDS, BRAKES AND SUSPENSION

✓ Metal Mudguards with Flaps
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Sprung Drawbar
✓ Air Brakes and Load Sensing
✓ Auto Slack Adjusters
✓ ABS Brakes
✓ Hydraulic Brake Load Sensing
✓ Air Suspension

MISCELLANEOUS

✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank (Suspension and Axles)
✓ Greasing Bank (Hydraulic Door)
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic with Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour

Capacity m3	6.82
LxWxH mm	4000x2500x700
Loading height mm	1775
Tyres	435/50 R19.5
Axle(s) mm/stud	2x90/8
Thickness (mm)	Floor 8 / Side 6
Sprung d/bar	Option

Capacity m3	7.90
LxWxH mm	4500x2500x800
Loading height mm	2050
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Thickness (mm)	Floor 8 / Side 6
Sprung d/bar	Option

Capacity m3	10.6
LxWxH mm	5000x2500x900
Loading height mm	2200
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Thickness (mm)	Floor 8 / Side 6
Sprung d/bar	STD

Capacity m3	12.9
LxWxH mm	5500x2500x1000
Loading height mm	2300
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Thickness (mm)	Floor 10 / Side 8
Sprung d/bar	STD

Capacity m3	14.1
LxWxH mm	6000x2500x1000
Loading height mm	2450
Tyres	445/65 R22.5
Axle(s) mm/stud	2xcom/10
Thickness (mm)	Floor 10 / Side 8
Sprung d/bar	STD

Capacity m3	16.6
LxWxH mm	6500x2500x1100
Loading height mm	2550
Tyres	445/65 R22.5
Axle(s) mm/stud	3xcom/10
Thickness (mm)	Floor 10 / Side 8
Sprung d/bar	STD

Capacity m3	18.0
LxWxH mm	7000x2500x1100
Loading height mm	2550
Tyres	445/65 R22.5
Axle(s) mm/stud	3xcom/10
Thickness (mm)	Floor 10 / Side 8
Sprung d/bar	STD
