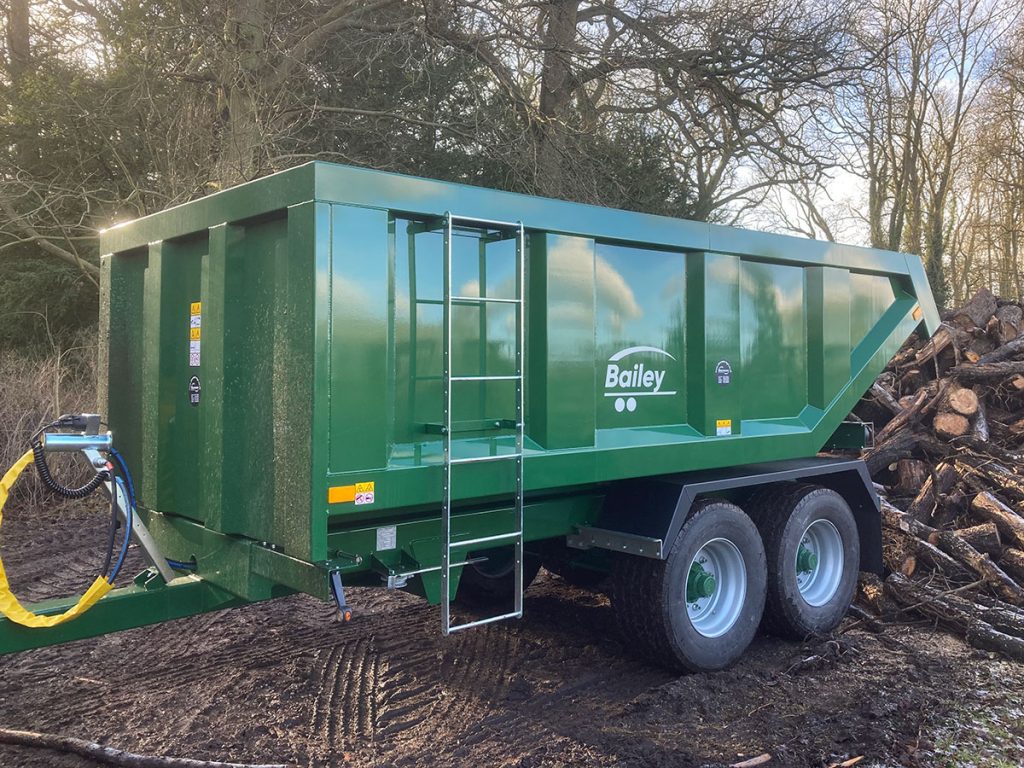

Bailey Dumper

Models 5 models

Enquire Now

FOR HEAVY DUTY WORK…

Agricultural Dumpers feature a heavy-duty RHS bottom chassis mounted on a heavyduty tandem spring unit. This provides additional strength and durability.

An impressive tipping angle is achieved via twin extra-long reach 3 stage hydraulic cylinders. To protect against wear and tear Agricultural Dumpers are built with 4mm sides, strengthening channels and 4mm floors with hollow section runners at 300 mm centres.

Fitted on a heavy-duty tandem suspension.

STANDARD FEATURES

✓ Independent hydraulic brakes
✓ Sprung drawbar (on 12t, 14t and 16t)
✓ Heavy-duty EN8 towing eye
✓ Parking brakes
✓ Skid & skid carrier
✓ LED lights
✓ LED beacon
✓ Chromed rams
✓ Body prop
✓ Anti-chip paint on headboard
✓ Hydraulic hose carrier
✓ Colour coded pipes

OPTIONS

WINDOWS

✓ Front window
✓ Full front window

SHEETING

✓ Hydraulic Front to Back Sheet

DOORS

✓ Hydraulic Fold Down Door

SIDES AND FLOORS

✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides
✓ Extension Sides

LIGHTS

✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ High Visibility Safety Strips

TOWING EYES

✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye

GUARDS, BRAKES AND SUSPENSION

✓ Sprung Drawbar (8t and 10t)
✓ Metal Mudguards with Flaps
✓ Front Rubber Mudflaps
✓ Air Brakes with Load Sensing (12t-16t)
✓ Auto Slack Adjusters (12t-16t)
✓ ABS Brakes and Air Brakes with Load Sensing (12t-16t)
✓ Hydraulic Brake Load Sensing

MISCELLANEOUS

✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank (Suspension and Axles)
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Twin Tipping Pipes
✓ Toolbox
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour

Capacity m3	11.50
LxWxH mm	4630x2500x1225
Loading height mm	2415
Tyres	435/50 R19.5
Axle(s) mm/stud	2x80/8
Sprung d/bar	Option

Capacity m3	13.80
LxWxH mm	5430x2500x1225
Loading height mm	2570
Tyres	385/65 R22.5
Axle(s) mm/stud	2x90/8
Sprung d/bar	Option

Capacity m3	16.50
LxWxH mm	6030x2500x1300
Loading height mm	2645
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Sprung d/bar	STD

Capacity m3	19.50
LxWxH mm	6030x2500x1525
Loading height mm	2870
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Sprung d/bar	STD

Capacity m3	21.70
LxWxH mm	6630x2500x1525
Loading height mm	2920
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
Sprung d/bar	STD
