Bailey High Lift Trailers

Models 1 model

Enquire Now

WHEN YOU NEED TO DISCHARGE LOADS INTO ELEVATED BULKERS…

The 14 tonne High Lift trailer features a sprung drawbar and commercial axles mounted on heavy-duty tandem springs.

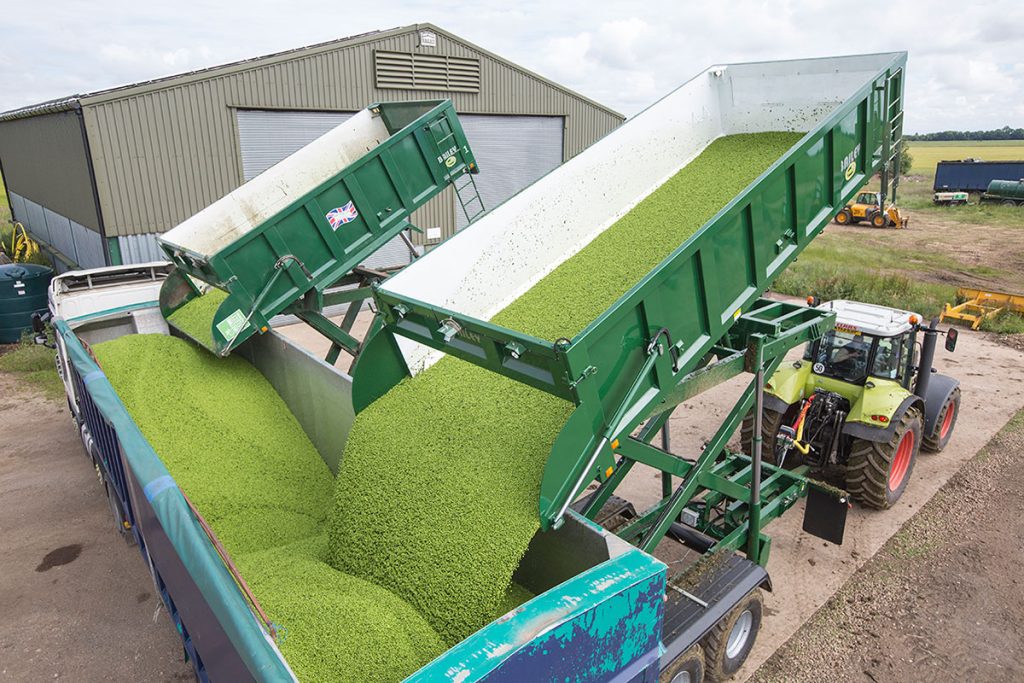

The main function of High Lift is discharging loads into elevated bulkers giving a clearance under the tail door of 4.75 metres.

A hydraulic door is fitted as standard with a choice of door from our TB range or a non-spill pea door. Standard on 385/65 R22.5 wheels, air brakes and load sensing, 6 metres long, 2500mm wide and body of 1225mm deep. Body prop, anti-chip paint paint on headboard, extra top lights.

STANDARD FEATURES

✓ Hydraulic door
✓ Commercial axle
✓ Sprung drawbar
✓ Plastic Mudguards with Flaps
✓ Air brakes with load sensing
✓ Extra top lights
✓ Body prop
✓ Anti-chip paint on headboard

OPTIONS

WINDOWS

✓ Front window
✓ Full front window
✓ Arched front window

SHEETING

✓ Rollover sheet
✓ Hydraulic Side to Side
✓ Hydraulic Front to Back
✓ Front working platform

SIDES AND FLOORS

✓ Extra depth (75mm stages)
✓ Extra thick floor
✓ Extra thick sides

LIGHTS

✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon
✓ Reversing Lights & Mudflaps
✓ Internal Light
✓ High Visibility Safety Strips

TOWING EYES

✓ Rear Towing Eye
✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye

GUARDS, BRAKES AND SUSPENSION

✓ Metal Mudguards with Flaps
✓ Front Rubber Mudflaps
✓ ABS Brakes
✓ Auto Slack Adjusters
✓ Hydraulic Brake Load Sensing

MISCELLANEOUS

✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Greasing Bank – Hydraulic Door
✓ Hinged Rear Draw Bar (Hydraulic to Rear)
✓ Hinged Rear Draw Bar (Hydraulic and Air to Rear)
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic w/Hand Pump
✓ Reversing Camera
✓ Storage Rack (Bolt On)
✓ Twin Tipping Pipes
✓ Toolbox
✓ Load Cell Weighing System
✓ Wooden Nudge Bar
✓ Wheel Nut Indicators
✓ Bespoke Colour

Capacity m3	17.27
Length x height mm	6000x1225
Loading height mm	2770
Tyres	385/65 R22.5
Axle(s) mm/stud	2xcom/10
