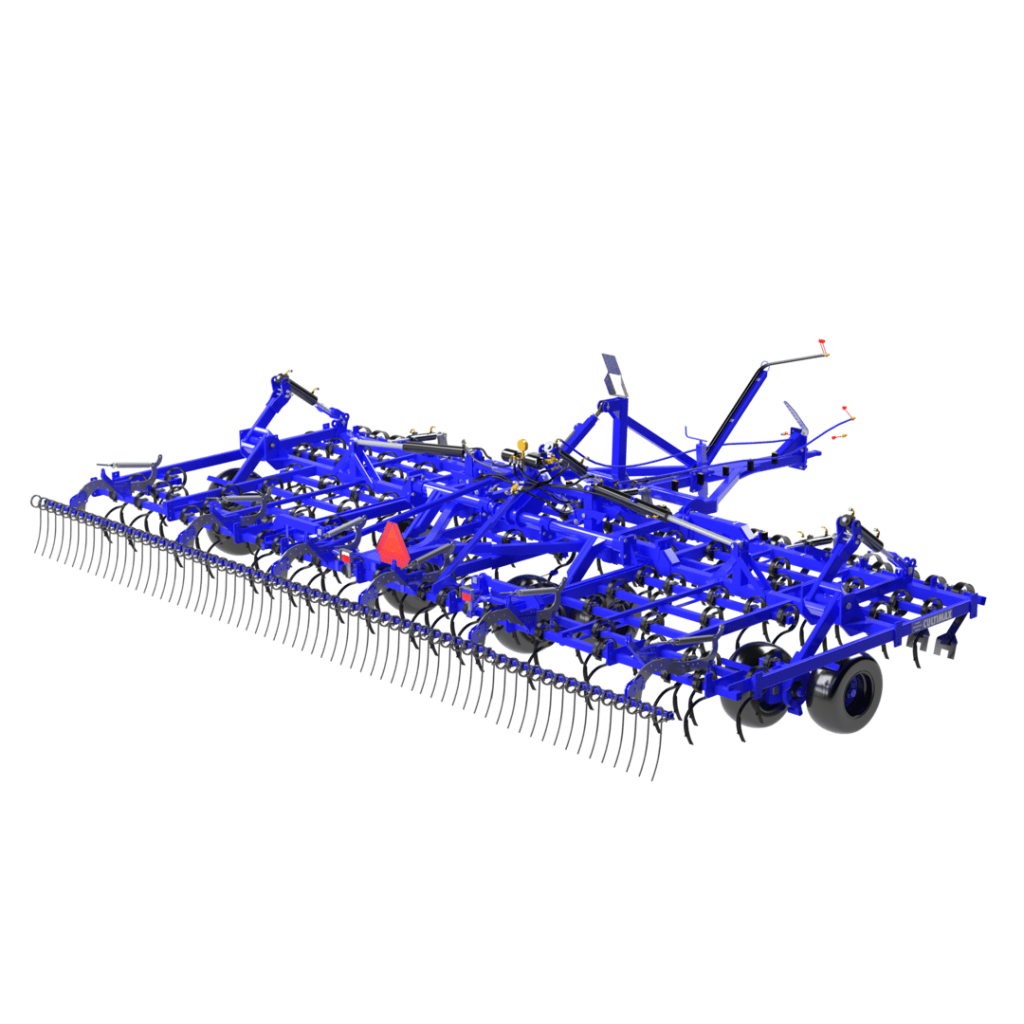

Our trailed CULTIMAX seedbed cultivator is an optimal solution for
both medium and large-sized farms
The hydraulically adjustable cracker board crushes clods as well as producing a level finish of the soil.
This, combined with a tine spacing of 80 mm and a row spacing of at least 310 mm, ensure optimal cultivating and leveling, as well as an excellent flow of soil and plant residues through the cultivator.
A precise and constant working depth is achieved by using special c clip spaces on the hydraulic rams for the wheel suspension.
Together with DALBO’s hydraulic weight distribution via DUOFLEX, which ensures an evenly distributed ground pressure over the entire working width, CULTIMAX is a very efficient and versatile seedbed cultivator that can be adapted to individual needs of the customer.
CULTIMAX standard equipment
- Fully hydraulic folding and unfolding of sections. Switching from driving on roads to field operation without leaving the tractor.
- LED lighting.
- Strong frames made of quality steel.
- 7 rows of heavy duty spring tines.
- Tine spacing 80 mm.
- Hydraulic weight distribution.
- 2 sets of bogie wheels 300/55/14.5.
- Hydraulic cracker board, front.
- Hydraulic weight distribution via DUOFLEX ensures an evenly distributed ground pressure over the entire working width, regardless of the contours of the ground.
- DUOFLEX with individual working sections.
| Transport width x height | 3.00 x 2.65 m |
|---|---|
| Working width | 5.50 m |
| Number of tines (10 x 45 mm, 80 mm spacing) | 72 pcs. |
| Hydr. cracker board at front – standard (number of tines) | 20 pcs. |
| Heavy-duty rear harrow (number of tines/weight) | 45 pcs./100 kg |
| Min. power requirements | 100 HP |
| Transport width x height | 3.00 x 3.15 m |
|---|---|
| Working width | 6.50 m |
| Number of tines (10 x 45 mm, 80 mm spacing) | 82 pcs. |
| Hydr. cracker board at front – standard (number of tines) | 24 pcs. |
| Heavy-duty rear harrow (number of tines/weight) | 53 pcs./125 kg |
| Min. power requirements | 140 HP |
| Transport width x height | 3.00 x 3.90 m |
|---|---|
| Working width | 8.00 m |
| Number of tines (10 x 45 mm, 80 mm spacing) | 100 pcs. |
| Hydr. cracker board at front – standard (number of tines) | 28 pcs. |
| Heavy-duty rear harrow (number of tines/weight) | 65 pcs./150 kg |
| Min. power requirements | 170 HP |
| Transport width x height | 3.00 x 4.40 m |
|---|---|
| Working width | 9.00 m |
| Number of tines (10 x 45 mm, 80 mm spacing) | 112 pcs. |
| Hydr. cracker board at front – standard (number of tines) | 32 pcs. |
| Heavy-duty rear harrow (number of tines/weight) | 73 pcs./170 kg |
| Min. power requirements | 220 HP |
| Transport width x height | 4.00 x 4.40 m |
|---|---|
| Working width | 10.00 m |
| Number of tines (10 x 45 mm, 80 mm spacing) | 124 pcs. |
| Hydr. cracker board at front – standard (number of tines) | 36 pcs. |
| Heavy-duty rear harrow (number of tines/weight) | 81 pcs./200 kg |
| Min. power requirements | 280 HP |
