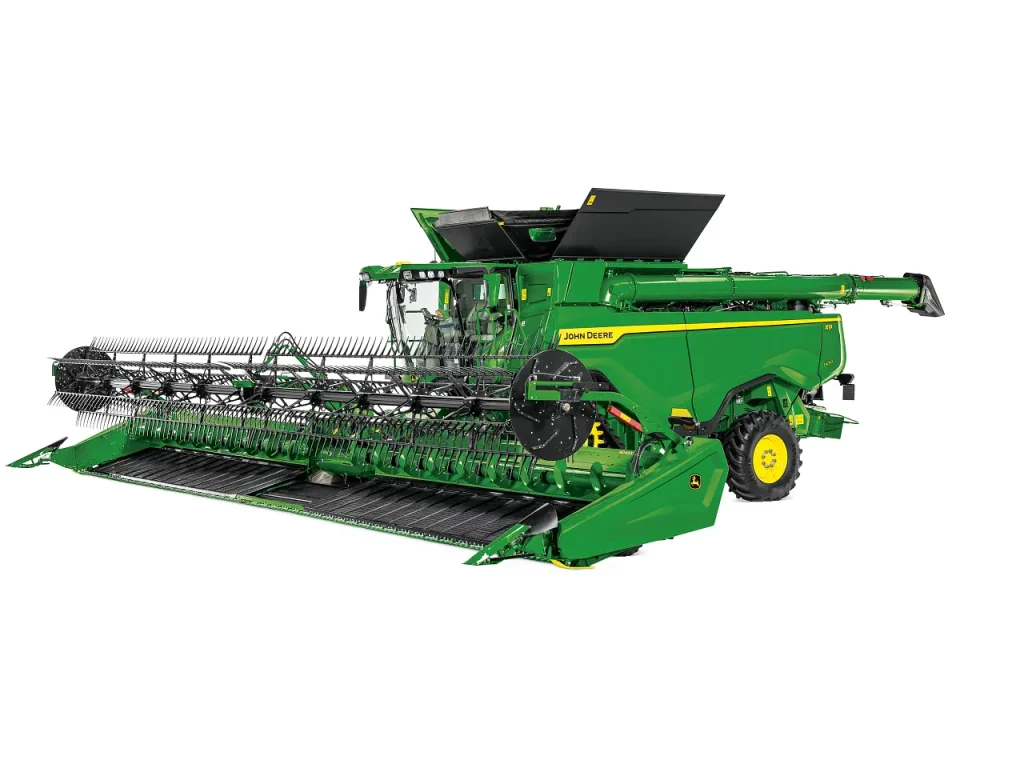

John Deere Hinged Draper Header
| Type | Hinged Draper Header |
|---|---|
| Cutting Width | 10.7 m |
| Draper Belt Width | 121.2 cm |
| Reel Diameter | 106.7 cm |
| Operating Speeds - Minimum | 8.0 rpm |
| Operating Speeds - Maximum | 70.0 rpm |
| Cutterbar Length | 10.7 m |
| Cutterbar Type | Dual straight-line knife drive system with 101.6-mm (4-in) knife |
| Overall Operating Depth | 3.96 m |
| Type | Hinged Draper Header |
|---|---|
| Cutting Width | 12.2 m |
| Draper Belt Width | 121.2 cm |
| Reel Diameter | 106.7 cm |
| Operating Speeds - Minimum | 8.0 rpm |
| Operating Speeds - Maximum | 70.0 rpm |
| Cutterbar Length | 12.2 m |
| Cutterbar Type | Dual straight-line knife drive system with 101.6-mm (4-in) knife |
| Overall Operating Depth | 3.96 m |
| Type | Hinged Draper Header |
|---|---|
| Cutting Width | 13.7 m |
| Draper Belt Width | 121.2 cm |
| Cutterbar Length | 13.72 m |
| Cutterbar Type | Dual straight-line knife drive system with 101.6-mm (4-in) knife |
| Reel Diameter | 106.7 cm |
| Operating Speeds - Minimum | 8.0 rpm |
| Operating Speeds - Maximum | 70.0 rpm |
| Overall Operating Depth | 3.96 m |
| Type | Hinged Draper Header |
|---|---|
| Draper Belt Width | 121.2 cm |
| Reel Diameter | 106.7 cm |
| Operating Speeds - Minimum | 8.0 rpm |
| Operating Speeds - Maximum | 70.0 rpm |
| Knife Drive | Base: dual knife |
| Cutterbar Length | 15.3 m |
| Knife Speed | X-Series: 520 rpm S-Series: 490 rpm |
| Cutterbar Type | Dual straight-line knife drive system with 101.6-mm (4-in.) knife |
