150–600HP 3–9m 250mm depth

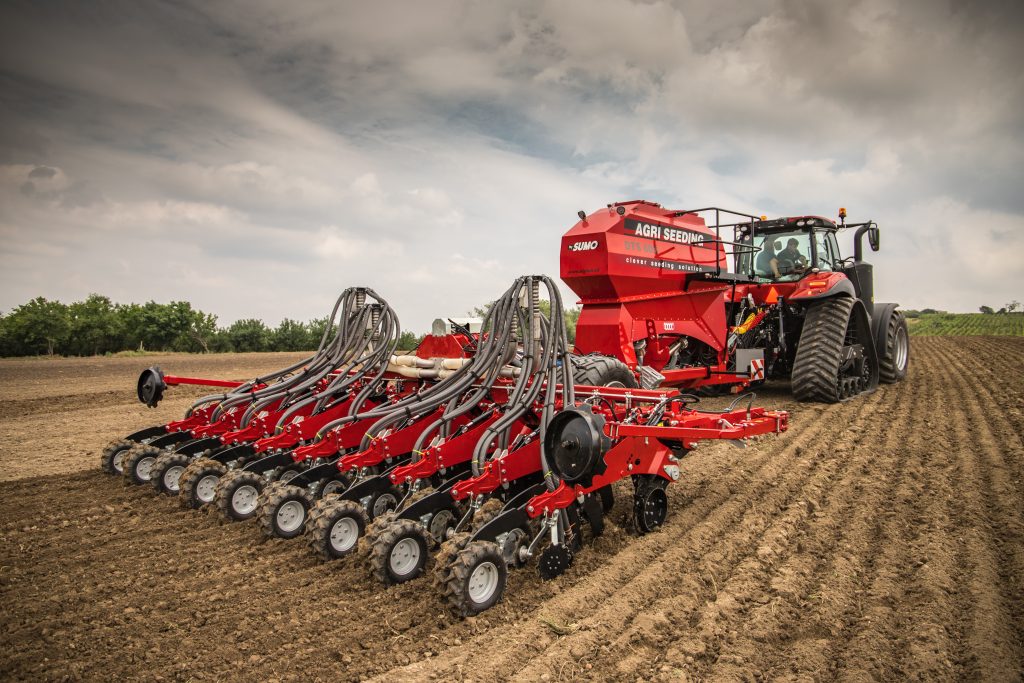

True Conservation Agriculture with DTS Strip-Till Technology
The NEW Sumo DTS® combines targeted soil restructuring with precise seed placement in a single pass. Soil is loosened directly beneath the seed row while remaining consolidated around each seed, promoting strong crop establishment while maintaining valuable surface residues.
This strip-till approach supports regenerative farming by improving soil structure, protecting soil biology, and minimising unnecessary disturbance. Large areas can be drilled quickly in one pass, while improving soil aggregation, drainage and reducing erosion.
Because the majority of soil between rows remains undisturbed, worm populations and organic matter levels increase, improving soil fertility and helping retain moisture for emerging crops. Over time, strip-tilling directly into stubble can reduce the need for deeper cultivations as soil structure, drainage and load-bearing capacity naturally improve.
The DTS coulters are independently mounted and controlled by a constant flow-pressurised hydraulic system, ensuring excellent contour following and highly consistent seed placement. Each coulter performs multiple tasks in a single pass: seedbed preparation, drilling and fertilising, followed by reconsolidation.
The DTS is equally effective drilling into stubble or green cover crops, maintaining root structure while evenly managing surface residues.
A uniquely versatile drill, the DTS is capable of direct drilling, minimum-till drilling and conventional plough-based establishment. Designed and manufactured in Britain, it features Sumo's Orga metering unit, delivering accurate seed and fertiliser application across a wide range of crops and rates.
Agronomic Benefit of Each Working Part of the Machine
Disc & Tine
A 18" straight serrated leading disc initiates a rip line for the following tine, ensuring a clean entry, substantially reducing surface disturbance and stopping the germination of unwanted grassweeds. The disc also cut trash and allows previous crop residues to pass through the machine adding more organic matter to the undisturbed areas of soil. This method reduces the reliance on chemical treatments that are leached into watercourses. By removing competition, young crops can establish more vigorously.
The tine produces incredibly targeted tillage to a single strip and provides just enough soil movement to create the perfect conditions for seed placement. Depth can be adjusted down to 250mm for deep-rooting crops, leaving a seeding zone with a good tilth and a rooting zone free from compaction, with good drainage and aeration.
Seed Coulter & Fertiliser
Low draft, single or double row seeding boots place seed in perfect contact with newly tilled soil. They boast wear-resistant tungsten for good soil penetration and a shallow wing angle for low draft pulling. DTS owners have the option to add many different fertiliser options on Grain & Fertiliser models.
Covering Discs & Consolidation
Covering discs channel loosened soil over the seed before independent, press wheels perform unparalleled re-consolidation for perfect seed to soil contact by firming the soil around the seed and eliminating any potential air pockets.
| Working Width | 3.0m |
|---|---|
| Transport Width | 3.0m |
| Total Hopper Capacity (litres) | 1900l |
| Row / Loosening Leg Spacing (mm) | 333 |
| Rows / Loosening Legs | 9 |
| Half Width Shut Off | No |
| Markers | Optional |
| Type | Mounted |
| Tyre Size | - |
| Weight | 3280kg |
| Working Width | 4.0m |
|---|---|
| Transport Width | 2.8m |
| Total Hopper Capacity (litres) | 3600l |
| Row / Loosening Leg Spacing (mm) | 333 |
| Rows / Loosening Legs | 12 |
| Half Width Shut Off | No |
| Markers | Optional |
| Type | Trailed |
| Tyre Size | 560/45-22.5 |
| Weight | 6600kg |
| Working Width | 5.0m |
|---|---|
| Transport Width | 2.8m |
| Total Hopper Capacity (litres) | 3600l |
| Row / Loosening Leg Spacing (mm) | 333 |
| Rows / Loosening Legs | 15 |
| Half Width Shut Off | No |
| Markers | Optional |
| Type | Trailed |
| Tyre Size | 560/45-22.5 |
| Weight | 8061kg |
| Working Width | 6.0m |
|---|---|
| Transport Width | 2.8m |
| Total Hopper Capacity (litres) | 3600l |
| Row / Loosening Leg Spacing (mm) | 333 |
| Rows / Loosening Legs | 18 |
| Half Width Shut Off | Yes |
| Markers | Optional |
| Type | Trailed |
| Tyre Size | 620/40-22.5 |
| Weight | 9550kg |
| Working Width | 8.0m |
|---|---|
| Transport Width | 2.9m |
| Total Hopper Capacity (litres) | 3600l |
| Row / Loosening Leg Spacing (mm) | 333 |
| Rows / Loosening Legs | 24 |
| Half Width Shut Off | Yes |
| Markers | - |
| Type | Trailed |
| Tyre Size | 710/35-22.5 |
| Weight | 11135kg |
| Working Width | 9.0m |
|---|---|
| Transport Width | 2.9m |
| Total Hopper Capacity (litres) | 3600l |
| Row / Loosening Leg Spacing (mm) | 346 |
| Rows / Loosening Legs | 26 |
| Half Width Shut Off | Yes |
| Markers | - |
| Type | Trailed |
| Tyre Size | 710/35-22.5 |
| Weight | 12673kg |
