5.90 to 9.60m Working width

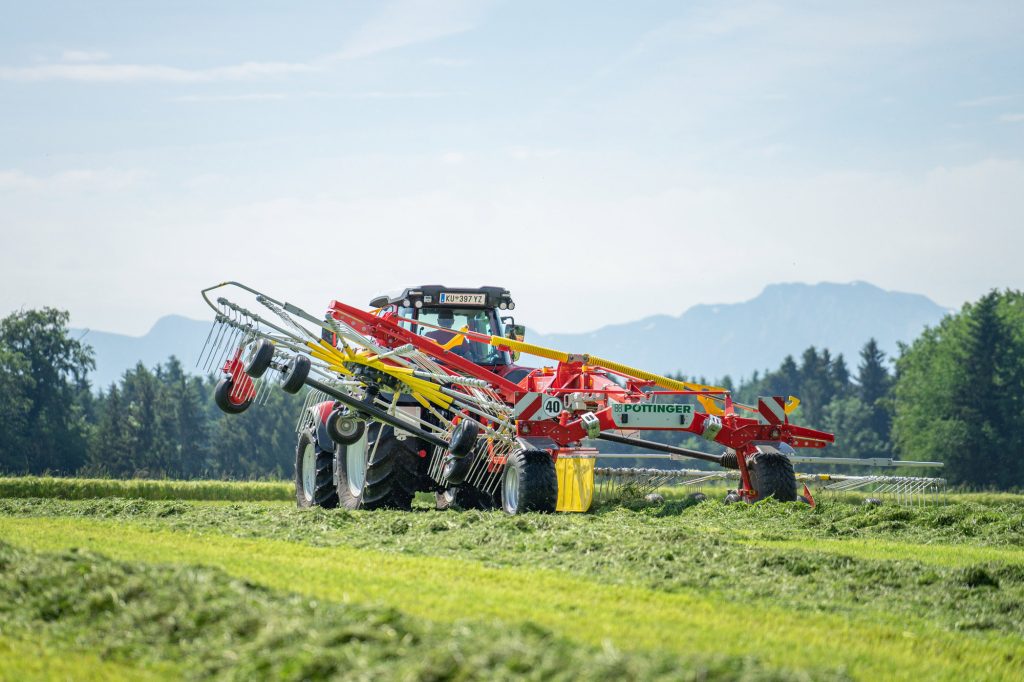

TOP C Twin rotor rakes with centre swath delivery with transport chassis
Uniform swaths in all conditions. Easy to operate thanks to the working width adjustment. On many models the swath width can be easily matched to the next harvesting machine.
Tines are reliable even with high volumes of forage.
Tine engagement is on a vertical axis with the tine carrier. The tine leg is only at a slight angle. Due to the lower leverage, the tines do ride up over the sward, even with high volumes of forage, so all the crop is raked into the swath and nothing is left behind.
To ensure a long service life, the outermost tine pair on each tine arm is slightly shorter and thicker than the other tines. Tine breakages are reduced. All bases are covered, because the tine saver system prevents any lost tines from entering the swath.
The TOP TECH PLUS Rotor Unit:
The large cam tracks have a diameter of 350 mm or 420 mm, depending on the model. The cam track gently raises the control rollers to minimise the force acting on the rotor unit. Wear is greatly reduced as a result. You can be sure a long service life is achieved.
The smooth ramps make sure that the tines exit the swath ergonomically. This ensures that a loose and airy swath is placed. The raked forage can then continue to dry in the wind as a result.
The dust-tight encapsulated cam track only needs one greasing point. The rotor gears run in a sealed semi-liquid grease gearbox.
The position of the cam track is adjustable, this means that you can define the exact tine withdrawal point and adapt it to your harvesting conditions.
Sturdy tine arms are removable to reduce width and height during transport. The heavy-duty tine arm cross-section is strong and resistant to twisting and bending. The force is transmitted by the profiles. The linch pin is only a security measure. The tine arms are simply slotted in.
The whole tine arm can be exchanged quickly and easily in the event of any damage. Simply undo two bolts to slide the tine arm, control arm and cam roller out of the rotor casing.
| Working width | 5,9 m |
|---|---|
| Swath width | 1 m |
| Rotor diameter front/rear | 2,8 / 2,8 |
| Transport length | 5,15 m |
| Rotor diameter | 2,8 m |
| Tine arms per rotor | 11 pcs |
| Working width adjustment | Fixed width |
| Transport width | 2,55 m |
| Transport height | 3,52 m |
| Parking height without tine arms removed | 3,52 m |
| Parking height with tine arms removed * | 2,92 m |
| Removable tine carrier arms per rotor | 11 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 1470 kg |
| Power requirement | 40Hp |
| Mounting | Trailed |
| Tyres — chassis | 260/70-15,3 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 3-wheel chassis |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
| Working width | 6,25 - 6,9 m |
|---|---|
| Swath width | 1 - 1,8 m |
| Rotor diameter front/rear | 3,07 / 3,07 |
| Transport length | 5,83 m |
| Rotor diameter | 3,07 m |
| Tine arms per rotor | 11 pcs |
| Working width adjustment | Mechanical |
| Transport width | 2,55 / 2,9 m |
| Transport height | 3,8 m |
| Parking height without tine arms removed | 3,8 m |
| Parking height with tine arms removed * | 3,3 m |
| Removable tine carrier arms per rotor | 11 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 1680 kg |
| Power requirement | 50 HP |
| Mounting | Trailed |
| Tyres — chassis | 260/70-15,3 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 3-wheel chassis |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
| Working width | 6,75 - 7,5 m |
|---|---|
| Swath width | 1,1 - 2 m |
| Rotor diameter front/rear | 3,3 / 3,3 |
| Transport length | 5,83 m |
| Rotor diameter | 3,3 m |
| Tine arms per rotor | 13 pcs |
| Working width adjustment | Mechanical |
| Transport width | 2,55 / 2,9 m |
| Transport height | 3,99 m |
| Parking height without tine arms removed | 3,99 m |
| Parking height with tine arms removed * | 3,5 m |
| Removable tine carrier arms per rotor | 13 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 1940 kg |
| Power requirement | 60 HP |
| Mounting | Trailed |
| Tyres — chassis | 260/70-15,3 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 5-wheel chassis incl, tandem axles |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
| Working width | 6,75 - 7,5 m |
|---|---|
| Swath width | 1,1 - 2 m |
| Rotor diameter front/rear | 3,3 / 3,3 |
| Transport length | 5,83 m |
| Rotor diameter | 3,3 m |
| Tine arms per rotor | 11 pcs |
| Working width adjustment | Mechanical |
| Transport width | 2,55 / 2,9 m |
| Transport height | 3,99 m |
| Parking height without tine arms removed | 3,99 m |
| Parking height with tine arms removed * | 3,5 m |
| Removable tine carrier arms per rotor | 11 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 1800 kg |
| Power requirement | 60 HP |
| Mounting | Trailed |
| Tyres — chassis | 260/70-15,3 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 3-wheel chassis |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
| Working width | 7,7 - 8,8 m |
|---|---|
| Swath width | 1,3 - 2,6 m |
| Rotor diameter front/rear | 3,7 / 3,7 |
| Transport length | 6,5 m |
| Rotor diameter | 3,7 m |
| Tine arms per rotor | 13 pcs |
| Working width adjustment | Hydraulic |
| Transport width | 2,9 m |
| Transport height | 3,99 m |
| Parking height without tine arms removed | 3,99 m |
| Removable tine carrier arms per rotor | 13 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 2620 kg |
| Power requirement | 70 HP |
| Mounting | Trailed |
| Tyres — chassis | 340/55-16 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 5-wheel chassis incl, tandem axles |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
| Working width | 8,9 - 9,6 m |
|---|---|
| Swath width | 1,3 - 2,2 m |
| Rotor diameter front/rear | 4,3 / 4,3 |
| Transport length | 7 m |
| Rotor diameter | 4,3 m |
| Tine arms per rotor | 15 pcs |
| Working width adjustment | Hydraulic |
| Transport width | 2,95 m |
| Transport height | 3,95 m |
| Parking height without tine arms removed | 4,6 m |
| Parking height with tine arms removed * | 3,85 m |
| Removable tine carrier arms per rotor | 15 |
| Tines per tine arm | 4 pcs |
| Rotor unit | TOPTECH PLUS |
| PTO Input Speed | 540 rpm |
| Weight | 3130 kg |
| Power requirement | 80 HP |
| Mounting | Trailed |
| Tyres — chassis | 340/55-16 |
| Swath placement in direction of travel | Centre |
| Height adjustment system | Crank handle adjuster |
| Axle | 6-wheel chassis incl, tandem axles |
| Rotor tyres (standard) | 16 x 6,5-8 |
| Jockey wheels | Inner jockey wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle drive shaft on one end |
