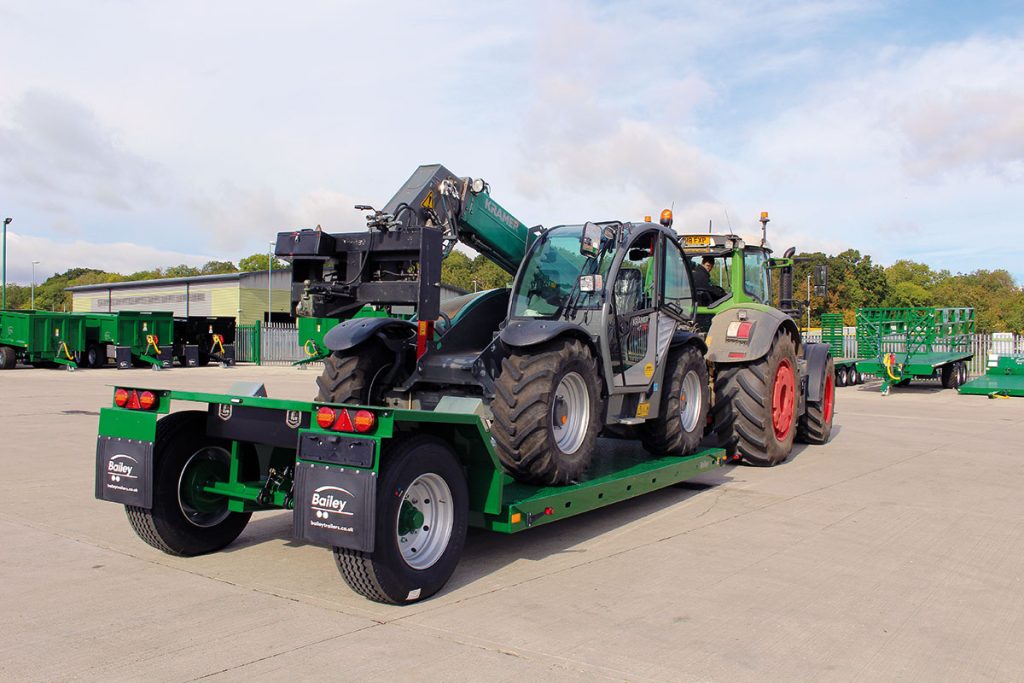

Bailey Drop Deck Low Loader

LOAD WITH EASE…

We’ve designed our range of Drop Deck Low Loader trailers so that the bed of the trailer lowers to the ground to enable easy and quick loading of implements, small crawlers and drills.

The 2500 mm wide bed on the single axle model is raised and lowered via two large tipping cylinders at the rear and by a tractor pickup hitch at the front. Available in 8 tonne capacities only. Because we link the hydraulic rear axle to the spool on the tractor you can lock the back axle in transport mode without leaving the cab.

STANDARD FEATURES

✓ Independent hydraulic brakes
✓ Parking brakes
✓ Heavy-duty EN8 towing eye
✓ 385/65 R22.5 tyres on 90mm 8 stud wheels
✓ Chequer plate floor
✓ Loading ramps
✓ LED lights
✓ Rear mudflaps
✓ LED beacon
✓ Lashing rings in the floor
✓ Toolbox
✓ Colour coded pipes

OPTIONS
