Bailey Flat Deck Low Loader

Models 2 models

Enquire Now

WHATEVER THE LOAD…

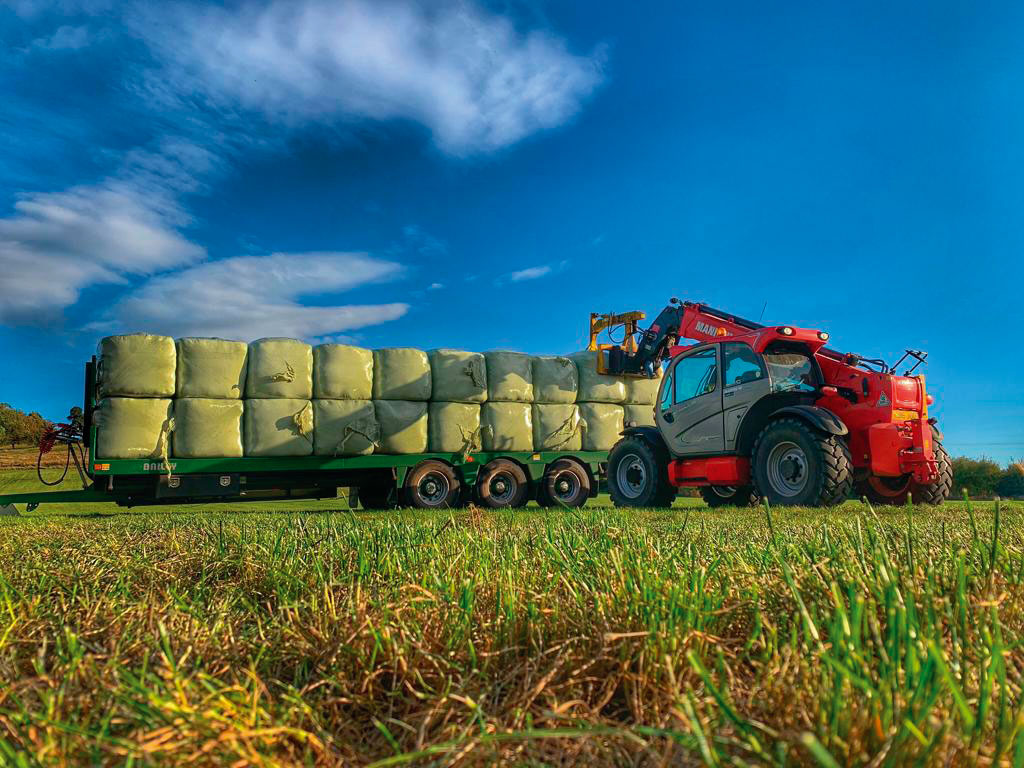

From small machines to medium bales. Our Flat Deck Low Loaders are available in 15 & 20 tonnes and are mounted on tandem or trindem springs. Features include: 38 mm hardwood planed floor, fully road legal lights and commercial axles as standard. All models are 2500 mm/8’2” overall width, and a deck height of 900 mm with addition of outriggers if required.

The Flat Deck Low Loader is built to the same specification as the Beavertail, but is flat to the back and comes with aluminium loading ramps complete with a storage rack underneath.

STANDARD FEATURES

✓ Independent hydraulic brakes
✓ FD20 air brakes and load sensing
✓ Parking brakes
✓ Heavy-duty EN8 towing eye
✓ Sprung drawbar
✓ Commercial axles
✓ 215/75 x 17.5 twins
✓ Aluminium loading ramps
✓ Hardwood floor
✓ Skid & skid carrier
✓ LED lights
✓ Number plate holder
✓ Rear mudflaps
✓ LED beacon
✓ Lashing rings in floor
✓ Strap points
✓ Toolbox x 2
✓ Anti-chip paint on headboard
✓ 900mm deck height
✓ Colour coded pipes

OPTIONS

LIGHTS

✓ Extra Flashing Beacon
✓ On/Off Switch for Flashing Beacon

TOWING EYES

✓ Towing Swivel Eye
✓ Scharmuller Hitch – Swivel
✓ Scharmuller Hitch – Cup Ball
✓ Scharmuller Hitch – Hitch Eye

GUARDS, BRAKES AND SUSPENSION

✓ Metal Mudguards / Flaps between wheels
✓ Steering Commercial Axle
✓ Front Rubber Mudflaps
✓ Air Brakes with Load Sensing (15 tonne models)
✓ Auto Slack Adjusters
✓ ABS Brakes with Air Brakes and Load Sensing (15 tonne models)
✓ ABS Brakes (20 tonne models)
✓ Hydraulic Brake Load Sensing
✓ Air Suspension

STOCKBOX

✓ Cattle or Deluxe version
✓ Slurry Box
✓ Inspection Doors

MISCELLANEOUS

✓ Winch (Hydraulic)
✓ Additional Toolbox
✓ Fold Up Trailer Skid (Shoe)
✓ Greasing Bank – Suspension and Axles
✓ Hinged Rear Draw Bar – Hydraulic to Rear
✓ Hinged Rear Draw Bar – Hydraulic and Air to Rear
✓ Jack – Screw
✓ Jack – Hydraulic
✓ Jack – Hydraulic with Hand Pump
✓ Reversing Camera
✓ Storage Rack
✓ Toolbox
✓ Wheel Nut Indicators
✓ Pullout Side Markers with Beacon
✓ Digger Stops
✓ Outriggers
✓ Side Guards
✓ Bucket Restraints at Front
✓ Bucket Rest at Rear (1200mm Sq)
✓ High Visibility Strips
✓ Bale Ladders (900mm)
✓ Bale Ladders (1500mm)
✓ Bale Ladders (Leant Back)
✓ Twist Locks
✓ Side Posts and Rails
✓ Side Posts and Straps
✓ Bolsters
✓ Bolster or Single Post Sockets
✓ Bespoke Colour

Length mm (feet / inches) (range in 5 increments)	7000 (22'11") - 11000 (36'1")

Length mm (feet / inches) (range in 5 increments)	8000 (26'3") - 13000 (42'8")
