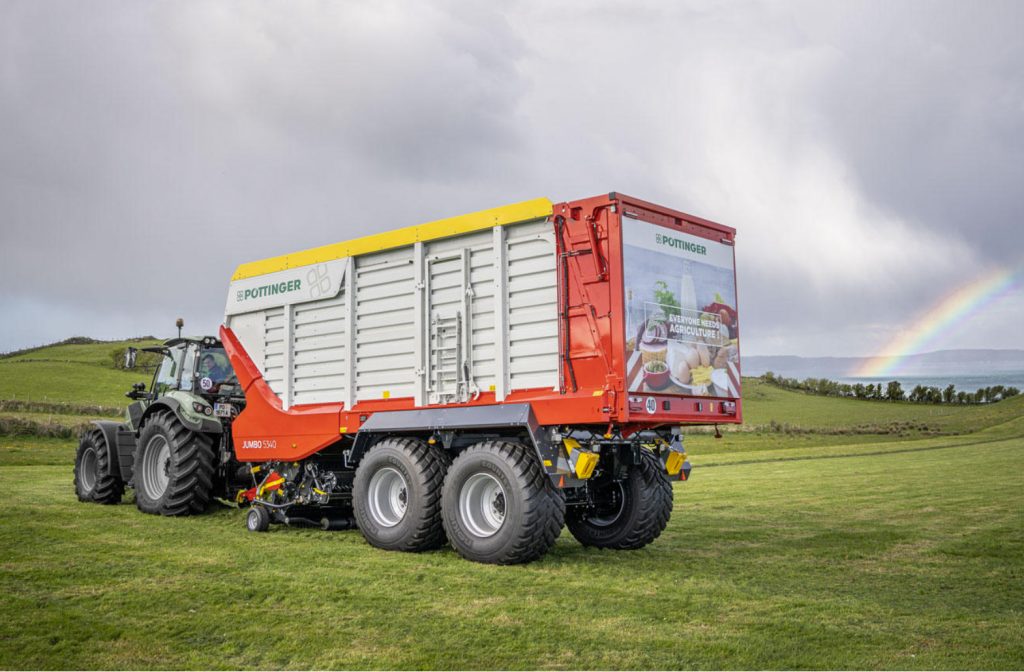

JUMBO 5000 Combined Loader Wagons

Packed with proven technology, the JUMBO 5000 combines the key performance features in one machine and covers almost every application.

The JUMBO 5000 series guarantees clean and tidy crop collection in all operating conditions throughout the harvesting season, ensuring optimum forage quality for your livestock.

Then there is the JUMBO Dry Forage (DF), which is a loader wagon for transporting dry materials such as hay, straw and alfalfa, this model features an impressive maximum load volume.

Perfect ground tracking

Regardless of the terrain in which you use your JUMBO, the floating pick-up adapts perfectly to the ground contours and protects the crop against contamination.

The optional pick-up jockey wheel chassis with floating function features a patented parallel linkage for unique ground tracking.

All-rounder pick-up: The standard pick-up for conventional silage work.

Profi pick-up: The optional high-performance pick-up for high density, wide swaths.

Cam track control: The shape of the cam track ensures optimum movement of the tines. The tines, which are controlled in a sweeping arc, will only take up crop at the correct angle if they are guided by a cam track. They convey the crop gently upwards and actively transfer it to the rotor at a synchronised speed. The tines then dip down at right angles to prevent the forage from being drawn in.

Tines: The optimised DURASTAR pick-up tines with a wire thickness of 6 mm enable a 20% longer service life with consistently high collection quality. This cuts wear costs.

Loading Rotor

The key component on the JUMBO 5000 is the loading rotor. As the heart of the machine, its robustness and performance are what stand out. The rotor and its gearbox deliver high output chopping and compression.

The rotor is driven by a PTO shaft with a wide-angled joint at both ends and a cam-type clutch to protect the drive train. The large-dimensioned grease filled rotor side drive gearbox is completely maintenance-free.

The bearing is located on the rotor frame between the rotor and gearbox to provide the best protection to the bearing and gearbox. The driveline is protected at an impressive torque of 2500 Nm, corresponding to a peak performance of 360 Hp.

A maximum loading capacity without torque peaks for continuous crop flow is ensured by the loading rotor which has eight rows of tines arranged in a helix. With a width of 1.56 mm, the rotor on the JUMBO 5000 is particularly effective.

The loading rotor has a diameter of 800 mm and, thanks to the helix arrangement of the tines, it can actively feed the forage smoothly through the 34 mm short-chop chopping system. The high intake capacity is predestined for the highest efficiency and performance

34 mm Short chop

The proven POWERCUT short-chop chopping system on board the JUMBO 5000 series is the ideal solution for efficient harvesting with the best chopping quality. The 45 knives are arranged asymmetrically to the rotor tines for a clean and tidy chopping action and are individually protected against foreign objects.

AUTOCUT fully automatic knife sharpening system

A precise and consistent chop is the basis for the best silage quality. AUTOCUT ensures that you and your customers have chopping quality that remains consistently high all day long.

Only really sharp knives can guarantee optimum chopping quality, lower power consumption and increased output. The optional AUTOCUT knife sharpening system is a convenient way of sharpening the knives fully automatically on the loader wagon itself. The number of sharpening cycles can easily be preset using the control terminal, depending on the wear of the knives. With knives that are permanently sharp, you can reduce fuel consumption by up to 15%. Maintenance work is also reduced by about 45 minutes per day, because automatic sharpening can take place during a break.

Electro-hydraulic drive system

The AUTOCUT on the JUMBO has an electro-hydraulic drive system which significantly reduces sharpening times.

The sharpening procedures can be individually adapted to what is required for the job in hand. The sharpening head can be adjusted in two dimensions to perfectly match the knife geometry.

The grinding stone, which is specially adapted to our knives, has a long service life and is very easy to change. This results in significant advantages over the use of flap discs.

State of the art load compartment

The construction of the JUMBO 5000 is very robust thanks to the full-length pillars and side panels. A strong top beam enables the completely open design and at the same time accommodates the load retention system. The free-standing, movable front panel consists of a solid welded section and can be used in a variety of ways.

High performance multipurpose rotor loader wagon for dry crops

The components of the JUMBO 5540 DF are designed for maximum throughput during loading. With a theoretical chopped length of 34 mm, the chopping system delivers the shortest possible chopped material.

Power requirement: 160 to 360 hp

Torque protection: 2.5 Nm

Volume: 45 to 54 m³

Pick-up width: 2.35 m
