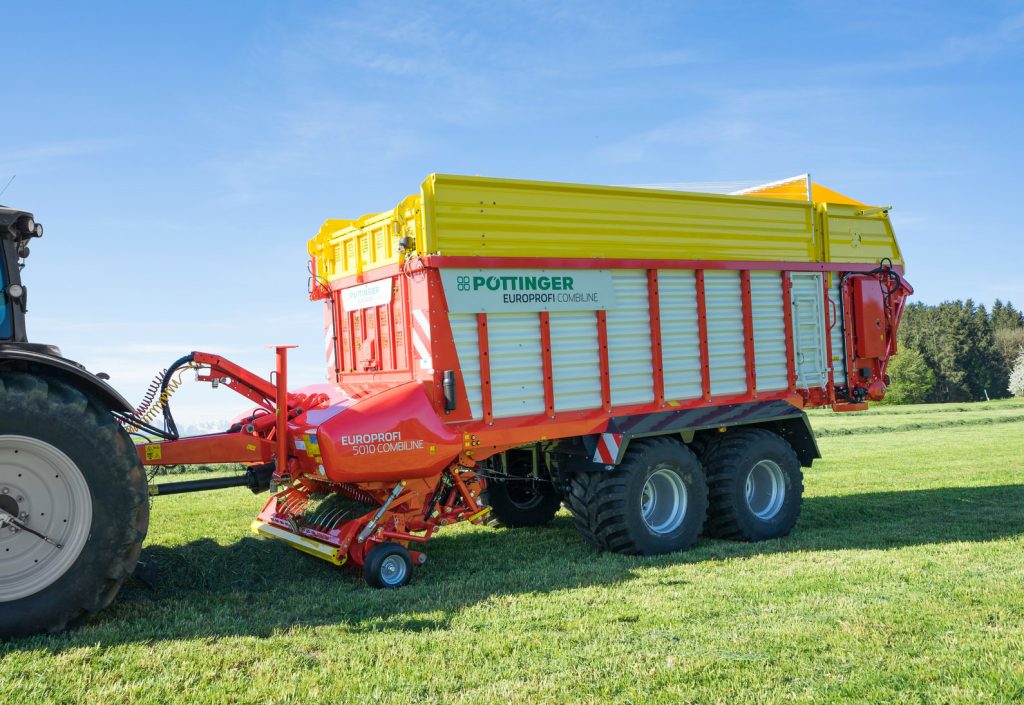

EUROPROFI COMBILINE Combined Rotor Loader Wagon
Power transfer up to 2,000 Nm
The drive train on the EUROPROFI loader wagon has been designed for high performance and is suitable for tractors up to 220 hp.
These new models are driven by a PTO shaft with a wide-angled joint and a cam-type clutch to protect the driveline. The large-dimensioned grease filled rotor side drive gearbox is completely maintenance-free.
The main bearing is located on the rotor frame between the rotor and gearbox to protect the bearing and gearbox.
The driveline is protected at a torque of 2,000 Nm, corresponding to a peak performance of 162 kW / 220 hp.
The smooth running and fuel-saving loading rotor.
EUROMATIC PLUS is the heart of EUROPROFI loader wagon series. Rugged and powerful, the rotor delivers high output chopping and compression. EUROMATIC PLUS stands for smooth, power-saving penetration of the crop and perfect transfer from the pick-up.
- The loading rotor has eight rows of tines arranged in a spiral and a diameter of 800 mm.
- The loading rotor is mounted on self-aligning ball bearings at both ends.
The bearing is located on the rotor frame between the rotor and gearbox to protect the bearings and gearbox.
The smooth running and fuel-saving loading rotor.
EUROMATIC PLUS is the heart of EUROPROFI loader wagon series. Rugged and powerful, the rotor delivers high output chopping and compression. EUROMATIC PLUS stands for smooth, power-saving penetration of the crop and perfect transfer from the pick-up.
-
- The loading rotor has eight rows of tines arranged in a spiral and a diameter of 800 mm.
- The loading rotor is mounted on self-aligning ball bearings at both ends.
The bearing is located on the rotor frame between the rotor and gearbox to protect the bearings and gearbox.
EASY MOVE swing-out knife bank
This unique swing-out knife bank makes light work of changing the knives.Press a button on the side of the wagon to move the knife bank support arms downwards and release the chopping system. Now you can simply pull the knife bank out alongside the wagon. A central knife release system is standard equipment.Simply press the release button to disengage the knives so they can easily be removed without the need for tools.The chopping system can be pivoted out directly from the tractor seat to clear any blockages.
Ensuring knife protection
PÖTTINGER protects your loader wagon with our patented individual knife protection system. Foreign objects are a danger to the rotor and chopping system plus downtime can be expensive and reduce the quality of the forage.
The triggering force is adapted to the high throughput capacity. The knives are held in the correct position to make sure that they chop consistently.
The knife retention springs and rollers on the individual knife protection system are swung safely out of the way. This greatly reduces the contamination of the knife holders.
The new front panel brings the highest forage quality with maximum compaction to the EUROPROFI series. It conserves the forage and can be adapted specifically to your needs. The front panel is equipped with a sensor system to measure the pressure exerted by wet, heavy grass.
Front panel upper section
The optimised angle of the panel produces optimum crop flow with low compaction requirements. With an overall length of of 670 mm and a width of 2,000 mm, it ensures the crop fills up perfectly.
Active controllable forage compression flap
The forage compression flap can be controlled hydraulically and is equipped with a sensor for automatic loading. The compression flap control system regulates the degree of filling and the height of the forage package in the loading chamber.
Loading torque sensor
Ensures smooth power delivery without torque peaks.
Roof ropes
The roof ropes are designed to retain the load and are particularly convenient to fit thanks to the quick-change system.
Automatic loading
The automatic loading system supports the driver during loading and ensures a high level of convenience.Two sensors, one in the front panel and one in the upper panel section, monitor the loading status. Sensor 1 in the front panel is set once with the required crop mass pressure. Sensor 2 is mounted on the wide forage compression flap. This responds with a time delay to positively influence the loading performance.By applying a slight counter pressure, it distributes the flow of crop more evenly across the width of the loading chamber. Thanks to the automatic loading system, it is now possible to fill the sides of the loading chamber perfectly as well.Loading torque sensor
To conserve the forage, PÖTTINGER has added technical innovations such as the automatic loading system with optional loading torque sensor.The loading torque sensor ensures smooth power delivery without torque peaks during loading. A sensor in the front panel of the loader wagon in combination with a torque sensor on the gearbox ensures optimum forage structure even in difficult and changing harvesting conditions.The driver can set the permissible loading torque for the rotor, which has a direct influence on the forage quality in the loading chamber.This means that even forage with a DM content <30 % can be loaded gently.
Filling strategy
To achieve maximum cost effectiveness, you can select the appropriate filling strategy from the comfort of the driver's cab to match the operating conditions.
The sensor system gives you optimum support and, if required, automatically adjusts to changing forage conditions.
| Loading volume (DIN 11741) | 25 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 8,92 m |
| Width | 2,51 m |
| Height | 3,55 m |
| Height with ropes for roof | + 325 mm |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 1-speed |
| Scraper floor motor (option) | 2-speed |
| Length loading area (Width 2,1) | 5,42 m |
| Loading volume with medium compression | 45 m³ |
| Track width | 1,95 m |
| Weight of basic version | 7150 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 15000 kg |
| Permissible laden weight max. | 18000 kg |
| Tandem-axle, 25/40 kph | 15000 kg |
| Tandem-axle, 30/40 kph* | 15000 kg |
| Tandem-axle, 30/40 kph* max. | 18000 kg |
| Loading volume (DIN 11741) | 26 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 8,44 m |
| Width | 2,51 m |
| Height | 3,55 m |
| Height with ropes for roof | + 325 mm |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 1-speed |
| Scraper floor motor (option) | 2-speed |
| Length loading area (Width 2,1) | 5,68 m |
| Loading volume with medium compression | 45 m³ |
| Track width | 1,95 m |
| Weight of basic version | 6650 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 15000 kg |
| Permissible laden weight max. | 18000 kg |
| Tandem-axle, 25/40 kph | 15000 kg |
| Tandem-axle, 30/40 kph* | 15000 kg |
| Tandem-axle, 30/40 kph* max. | 18000 kg |
| Loading volume (DIN 11741) | 28 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 9,61 m |
| Width | 2,67 m |
| Height | 3,55 m |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 1-speed |
| Scraper floor motor (option) | 2-speed |
| Length loading area (Width 2,1) | 6,1 m |
| Loading volume with medium compression | 50 m³ |
| Track width | 1,95 m |
| Weight of basic version | 7650 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 18000 kg |
| Permissible laden weight max. | 21000 kg |
| Tandem-axle, 25/40 kph | 18000 kg |
| Tandem-axle, 30/40 kph* | 18000 kg |
| Tandem-axle, 30/40 kph* max. | 21000 kg |
| Loading volume (DIN 11741) | 29 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 9,12 m |
| Width | 2,67 m |
| Height | 3,55 m |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 1-speed |
| Scraper floor motor (option) | 2-speed |
| Length loading area (Width 2,1) | 6,36 m |
| Loading volume with medium compression | 50 m³ |
| Track width | 1,95 m |
| Weight of basic version | 7150 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 18000 kg |
| Permissible laden weight max. | 21000 kg |
| Tandem-axle, 25/40 kph | 18000 kg |
| Tandem-axle, 30/40 kph* | 18000 kg |
| Tandem-axle, 30/40 kph* max. | 21000 kg |
| Loading volume (DIN 11741) | 31 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 10,28 m |
| Width | 2,67 m |
| Height | 3,55 m |
| Height with ropes for roof | + 325 mm |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 2-speed |
| Length loading area (Width 2,1) | 6,79 m |
| Loading volume with medium compression | 55 m³ |
| Track width | 1,95 m |
| Weight of basic version | 7850 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 18000 kg |
| Permissible laden weight max. | 21000 kg |
| Tandem-axle, 25/40 kph | 18000 kg |
| Tandem-axle, 30/40 kph* | 18000 kg |
| Tandem-axle, 30/40 kph* max. | 21000 kg |
| Loading volume (DIN 11741) | 32 m³ |
|---|---|
| Theoretical cutting length | 39 mm |
| Number of knives max. | 35 pcs |
| Pick-up recording width | 1,85 m |
| Length | 9,81 m |
| Width | 2,67 m |
| Height | 3,55 m |
| Height with ropes for roof | + 325 mm |
| Number of scraper floor chains | 4 pcs |
| Scraper floor motor (standard) | 2-speed |
| Length loading area (Width 2,1) | 7,04 m |
| Loading volume with medium compression | 55 m³ |
| Track width | 1,95 m |
| Weight of basic version | 7350 kg |
| Chassis | Tandem axle |
| Permissible laden weight (standard) | 18000 kg |
| Permissible laden weight max. | 21000 kg |
| Tandem-axle, 25/40 kph | 18000 kg |
| Tandem-axle, 30/40 kph* | 18000 kg |
| Tandem-axle, 30/40 kph* max. | 21000 kg |
