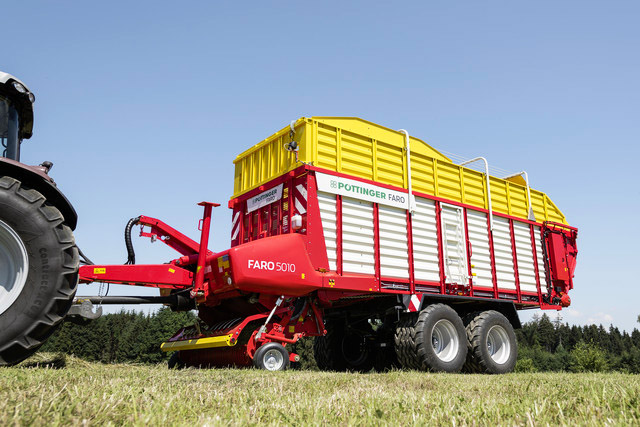

FARO Rotary Loader Wagons

The FARO series meets demand for high performance rotor technology for medium sized tractors. The rotor with dual tines is especially suitable for handling hay.

ROTOMATIC PLUS

The loading rotor with a diameter of 750 mm achieves a high throughput during chopping, conveying and compacting. The 7 mm thick conveyor tines are made of durostat hardened and tempered boron steel and feed the crop perfectly into the chopping system.

The best chopping quality with a chopped length of 45 mm

The FARO is the ideal choice for high forage quality thanks to the chopping system with 31 knives and a theoretical chopped length of 45 mm.

The forage has the optimum structure for ruminants.

An optimum distance between the knives and tines ensures smooth operation and protects the knives from foreign objects.

There is no easier way to change the knives. The EASY MOVE knife bank swings out alongside the wagon to ensure ease of use.

Change knives conveniently at the side of the loader wagon. This unique swing-out knife bank makes light work of changing the knives.

Pressing the swing-out button on the side of the wagon brings the chopping system into the swing-out position. Remove the interlock pins and detach the pivot cylinders from the knife bank.

Detaching the cylinders releases the chopping system. Now simply pull the knife bank out alongside the wagon.

Thanks to EASY MOVE, the knives are changed outside the loader wagon - no bumping your head, no bending over to work under the loader wagon.

PÖTTINGER protects your loader wagon with the patented SUPERMATIC individual knife protection system. Foreign objects are a danger to the tine conveyors and chopping system. Downtimes are costly and reduce the quality of the forage.

The triggering force is adapted to the high throughput capacity. The knives are held in the correct position to make sure that they chop consistently.

Easy knife changes - use the quick-change lever to move the retention roller back and remove each knife.

The smooth delivery of power during loading is what makes a modern loader wagon with an automatic loading system stand out. A sensor in the front panel of the loader wagon in combination with the forage compression flap ensures optimum forage structure even in difficult and changing harvesting conditions. The loading strategy can be adjusted conveniently from the tractor cab.

The volume of the loader wagon can then always be utilised in the most effective way to maximise cost effectiveness.

High quality components

Durability and top performance. Using the highest quality components is a central criterion. That is why Pottinger manufacture our parts from the highest quality materials.
